Ident number: SE-39300070 & NE- 3930002

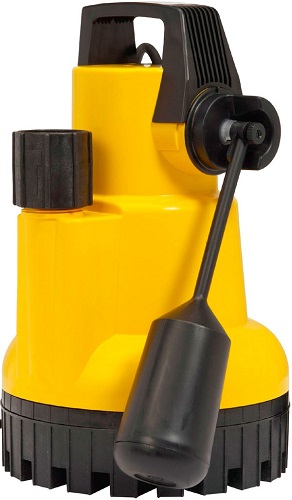

KSB Ama Drainer 301SE/NE
Fluids Handled:
" faecal-free waste water
" grey water
" river, lake and groundwater
Applications:
" drainage and lowering of surface water levels
" extraction of water from rivers and reservoirs
" automatic drainage of pits, shafts and cellars
" drainage of underground passages
" general drainage
Materials:
" pump casing - Polypropylene, glass fibre reinforced (30%)
" discharge casing - Polypropylene, glass fibre reinforced (30%)
" casing cover - Noryl GNF3
" impeller - Noryl GNF2
" motor housing - Chrome nickel steel (1.4301)
" float switch - Polypropylene
This pump has 1 1/4" BSP female discharge port and built in non-return valve.
Weight 5.6 Kg
Dimensions 325mm High x 214mm Diameter
Manufacturer KSB
Manufacturers Warranty 2 Years
Material Plastic
Impeller Material Noryl GNF2
Connection Type 1 1/4 Inch BSP Female
Voltage 240V 1Ph 50Hz
Max Flow 2.75 l/s
Max Head 6.5m
Full Load Current (FLC) 1.9A
Cable Length 10 Metres
Float Switch Yes
The Part number is different
The minimum pressure these pumps require is 2 meter's, if you do not have 2 meter’s differential from water level to discharge point,or a minimum of 14 meter's horizontal run, then use a 1" bore discharge hose or your motor will burn out
What is the lowest head pressure
Part numbers have changed to harmonise along with design changes. The part number stated is the current one in use, there are different numbers for OEM products also, if you have any doubts please advise the part number and we will confirm.
