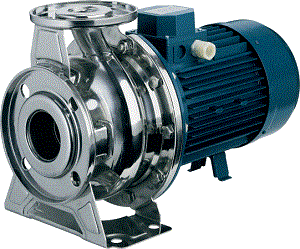

3-3L SERIES
Centrifugal pumps close coupled and standardized
CENTRIFUGAL ELECTRIC PUMPS END SUCTION IN COMPLIANCE WITH EN 733
(FORMER DIN 24255)
End suction centrifugal pumps built in stainless steel AISI 304
(3 Series) and AISI 316L (3L Series)
APPLICATIONS
Water supply to civil, agricultural and industrial plants
Pressure boosting
Fire-fighting, heating systems and air-conditioning
Moving industrial liquids
Irrigation
Refrigeration towers
Swimming pools
Emptying
Washing plants
TECHNICAL DETAILS
Can also work in vertical position
Highly resistant contruction
Hydroforming process EBARA patent
PUMP TECHNICAL DATA
Maximum working pressure: 10 bar
Maximum temperature of the liquid:
-10°C ÷ +90°C
-10°C ÷ +110°C (L-H-HS-HW-HSW versions)
-20°C ÷ +120°C (E-ES version)
MEI >0,4
For further information please see our Data Book on the web site www.
ebaraeurope.com
MOTOR TECHNICAL DATA
High efficiency IE2 motors starting from 0,75kW up to 5,5kW (for 3(L)M)
High efficiency IE3 motors starting from 7,5kW up to 22kW (for 3(L)M)
High efficiency IE3 motors starting from 0,75kW up to 55kW (for 3(L)S and 3(L)P)
Self-ventilated 2 and 4 poles asynchronous motor
Class of insulation F (B for high temperatures)
IP 55 protection degree
230V ±10%, 50Hz single phase voltage,
three phase voltage 220-240/380-415V ± 5% (up to 0,55kW included), 50Hz for 3(L)M4 SERIES,
three phase voltage 230/400V ±10% (from 0,75kW to 4kW included), 50Hz for 3(L)M4 SERIES,
three phase voltage 230/400V ±10% (up to 4kW included), 50Hz for the other models
three phase voltage 400/690V ±10% (from 5,5kW and over), 50Hz
Protection is user's responsibility
MATERIALS
Pump casing and seal housing disc:
- AISI 304 per 3 Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
- AISI 316L for 3L Serie 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
- AISI 316 microcasted for 3L Series 65-250
80-160/200/250
Impeller in:
- AISI 304 for 3 Series 32-125/160/200
40-125/160/200
50-125/160
- AISI 316L for 3L Series 32-125/160/200
40-125/160/200
50-125/160
- AISI 316 microcasted for 3 SERIES 65-125/160/200
3L SERIES 65-125/160/200
65-250
80-160/200/250
Standard mechanical seal:
- Carbon/Ceramic/NBR for 3 Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
- SiC/SiC/FPM for 3L Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200/250
80-160/200/250
- Special mechanical available on request
My code is different, it has more letters
The /i after the 3M in the code stands for the latest motor efficiencies to meet EuP / ErP requirements. Previously there was also an A instead of E, again relating to the motor efficiency.
What do the other codes mean
The other codes are for seal materials: H = Carbon Ceramic Viton, HS= Silicon Silicon Viton, E=Carbon Ceramic EPDM
Which motor will you supply
We will supply the motor to the current regulations at time of purchase. We cannot supply pumps with motors out of regulation.
UK Mainland Delivery is normally by next working day courier if order is placed before 1.30pm. ie despatched on Monday for Tuesday delivery. If placed after 1.30pm then the goods will be despatched the next working day. ie Monday for Wednesday delivery. Highlands and offshore deliveries differ.
