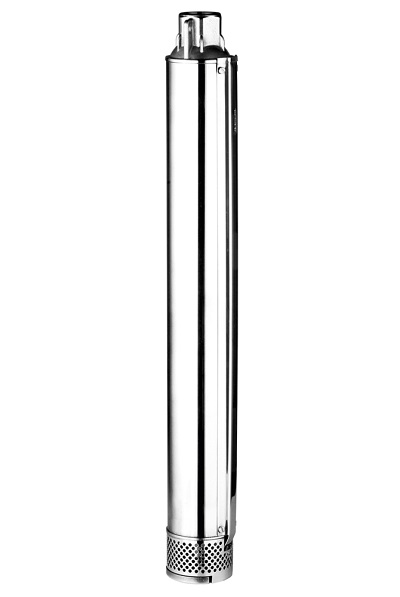

SB3
Borehole
3” SUBMERSED CENTRIFUGAL PUMPS
in AISI304
APPLICATIONS
• Moving clear water in wells
• Pressure boosting of clean water for agricultural, domestic industrial use
• Irrigation and moving water in general
TECHNICAL DETAILS
• Silent
• They can work horizontally
TECHNICAL DATA
• Maximum immersion: 60 m
• Maximum temperature of the liquid: 30°C
• Maximum sand content: 50 ppm
• Class of insulation F
• IP 68 protection degree
• 230V (+6 -10%) 50 Hz single-phase voltage,
400V (+6 -10%) 50 Hz three-phase voltage
• Discharge connection: G1
• Incorporated non-return valve
MATERIALS
• Casing, discharge outlet and motor connection in AISI 304
• Nozzle in POM polyacetalic resin
• Impeller in PPO reinforced with fibreglass
Can submersible pumps and motors operate submerging them in a tank
Yes, it’s important to position the electric pump properly,use a cooling sleeve and ensure that the pump is submerged in at least 0.5 m of liquid.
Are they suitable for horizontally
Yes you can. Collars have to be used to secure the pump to the tank’s bottom, this assures stability and a correct position.
