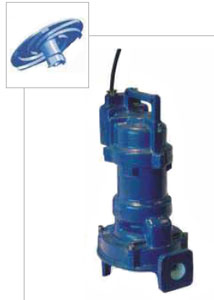

Gnasher 6T 400v Macerator Pump, G209T6T2-J7AA0
APPLICATION
Submersible electric pumps with grinder are used prevalently for the lifting of waters containing filamentous materials, paper or textile materials. In particular for clearance of waste waters originating from service stations, housing communities, camping sites.
CONSTRUCTION DATA
Submersible electric pumps, robust in construction, watertight electric motors accommodated in compartment, connected, by shafts of reduced lengths, to the impellers situated at the pump casing by the interposition of oil chamber between the hydraulic side and the electric motor. Asynchronous electric motors, squirrel cage type, IP68 protection, class H insulation. They are designed for S1 (continuous) service, with a max overloading up to 10 % environmental cooling at <40ºC temperature. Starts par hour up to 15. Motors' cooling comes through thermic exchange with surrounding fluid.
MATERIALS
Motor housing Cast iron EN-GJL-250, Impeller Cast iron GS400, Electric cable Neoprene H07RN/F, Shaft Stainless Steel AISI 420B, O-rings and lip seal Nitrile, Bolts A2 class - AISI 304, Mechanical seal Silicon Carbide / Silicon Carbide.
Why are these called Gnasher Pumps
Gnasher is a trade name used in the UK, these pumps grind or macerate the product before pumping
Are these pumps FAGGIOLATI manufacture
Yes they are manufactured by FAGGIOLATI
Does other pump suppliers use or have used FAGGIOLATI as their products
Yes, other manufactures like Lowara, Calpeda, Ebara, have or are using this brand as their own grinder or macerator
UK Mainland Delivery is normally by next working day courier if order is placed before 1.30pm. ie despatched on Monday for Tuesday delivery. If placed after 1.30pm then the goods will be despatched the next working day. ie Monday for Wednesday delivery. Highlands and offshore deliveries differ.
