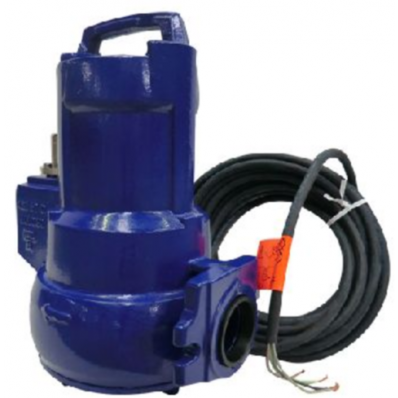

Ident. number 39017182 , 39017578, 39017105
Type of impeller Free flow impeller
Maximum drive rating 1.1 kW
Impeller material (EN standard) JL1030
Type of bearing Ball bearings
Drive frequency 50 Hz
Maximum speed of rotation 2, 900 1/min
Maximum flow rate 26 m³/h
Suitable for drinking water Yes
Casing material (EN standard) JL1030
No. of impeller entries Single entry
Casing material Cast iron
Pump set location Wet well
Max. permissible fluid temperature 40 Deg C
Free passage 41 mm
Main applications Building services; Water;Waste water / sewage
Type of installation Transportable; Stationary
Type of casing Annular casing
Type of connection Flange
Type of lubrication Grease lubrication
Type of drive Electric motor
Installation position Vertical
Shaft material (EN standard) 1. 4021
Shaft seal type Mechanical seal; Shaft seal ring
Drive Electric motor
Maximum head 15 m
Pump size 501 SE/NE/ND
Minimum head 5.5m
Connection to power supply 230 V, 1~ or 400v, 3~
The Part number is different
The minimum pressure these pumps require is 2 meter's, if you do not have 2 meter’s differential from water level to discharge point,or a minimum of 14 meter's horizontal run, then use a 1" bore discharge hose or your motor will burn out
What is the lowest head pressure
Part numbers have changed to harmonise along with design changes. The part number stated is the current one in use, there are different numbers for OEM products also, if you have any doubts please advise the part number and we will confirm.
