Coelbo Speedboard 1006MT
Single phase model
Available power: 1.5kW
Input power: 1×230V Output power: 3×230V
OPERATING CHARACTERISTICS
- Frequency inverter for the pump control.

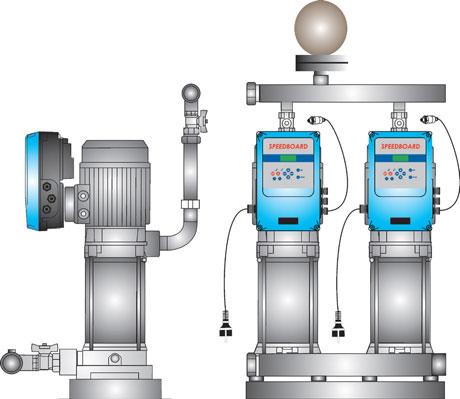

- Adaptable to any connection box of the motor through a wide range of fastenings.
- ART function (Automatic Reset Test). If the device has been stopped due to the action of the safety
system against dry operation, the ART tries to connect the pump, with a programmed periodicity
because the water supply could have been restored.
- Automatic restore system after an interruption of power supply. System restores the previous state
keeping the configuration parametres.
- Electronic input for detection of minium water level in aspiration tank- optional-. This system is
independent of the safety system against dry-running operation.
- Volt-free contact for monitoring the alarms displayed in screen originated by irregularities or problems
of the system.This option is only on monophasic divices.
- Control and information panel with LCD screen.
- Output 4-20 mA for an external pressure transducer.
- External pressure transducer 0-10 bar or 0-16 bar (under request).
- Inner current sensor with instantaneus digital reading.
- Register of operational controls. Infomation about: operating hours, counter of starts, counter of
connections to the power supply.
- Register of alarms. Information about type and number of alarms since the starting up of the device.
- Open PID in the expert menu.
- Aluminium heat exchanger.
- Cooling by forced convection by the fan of the motor with an intelligent temperature management
system.
I have 415v 3 ph motor, can i use this inverter
No, the motor has to be 230v 3 phase, the same voltage as the input.
I want to use a 400v 3 phase motor
You will have to use a 400v 3 phase supply and select one of our other inveters
Are they dificult to set up
No they are simple to set up,enter the constant presure required,factory set to 3bar.
