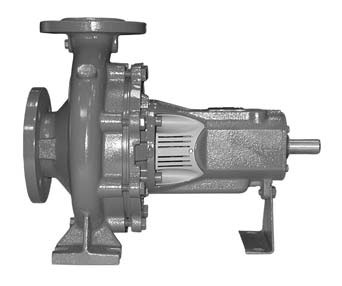

Standardised centrifugal pumps deriving from EN 733
(former DIN 24255).
APPLICATIONS
• Water supply to civil, agricultural and industrial plants
• Pressure boosting
• Fire-fi ghting, heating systems and air-conditioning
• Moving industrial liquids
• Refi ning plants, aqueducts and irrigation
TECHNICAL DETAILS
• Strong construction
• Possibility of use in fi re-fi ghting units
• They can be inserted into machinery units for industrial use
TECHNICAL DATA
• Maximum pressure: 147 bar
• Temperature of the liquid: -20°C ÷ 120°C
• Suction and discharge fl anges according to DN 2532 (standard)
MATERIALS
• Impeller in cast iron (or bronze)
• Cast iron pump body
• Shaft in AISI 420 stainless steel
• Mechanical seal in SiC/Carbon/EPDM
Can you supply in close coupled format
No, this range are only long coupled on a common baseplate. See 3D,MD & MMD range for close coupled.
Are these available in stainless steel construction
No, they are not available in Stainless steel construction, look at the 3 series pumps for stainless steel constructed pumps.
Can you offer different seal options
Yes, different seal options are available specific to your requirements
